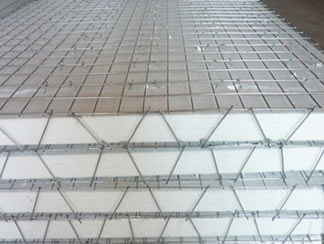

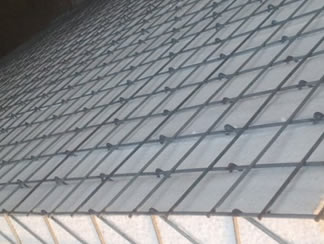

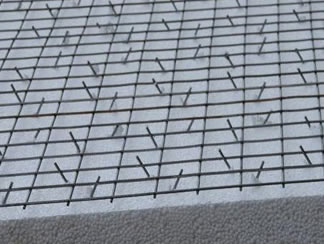

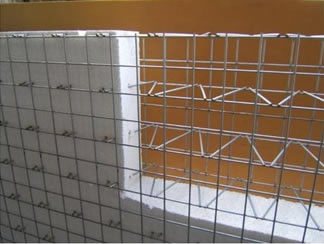

3D panel (as Figure 1) includes welded reinforcing meshes of high strength wire, diagonal wire and self-extinguishing expanded polystyrene uncoated concrete, manufactured in the factory. And shotcrete is applied to the panel assembled at the construction site, which gives the bearing capacity of the structure.

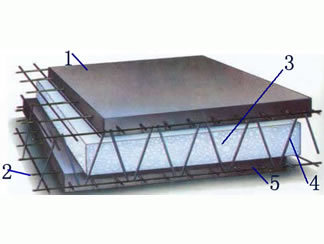

3D wire panel after shotcrete has the following five components (as Figure 2):

1.   The outer layer of shotcrete.

2.   Welded reinforcing mesh of high wire.

3.   The core of expanded polystyrene sheet.

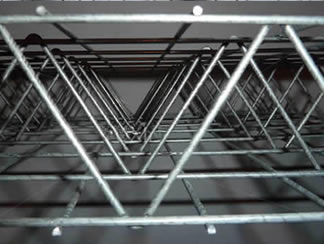

4.   Diagonal wire (stainless or galvanized wire).

5.   The inner layer of shotcrete.

3D Panel dimensions:

·        Length - 2m, 3m, 6m.

·        Width - 1.00m, 1.15m, 1.20m.

·        Thickness 50mm (for walls), 100mm (for the internal load-bearing walls), 120mm (for exterior wall).

·        weight: 25kg (3 × 1.2m panel)
